Laika

The Quadrupeds project is a new project at Roboclub.

We are designing and building an quadruped robot from scratch - everything except the motors, electronics and a ROS2-based autonomy stack.

In this project, we extensively analyzed the positioning of the motors to optimize the robot's movement capabilities, balance, and energy efficiency. Gear ratios were calculated to maximize torque output while minimizing mechanical interference and weight distribution issues.

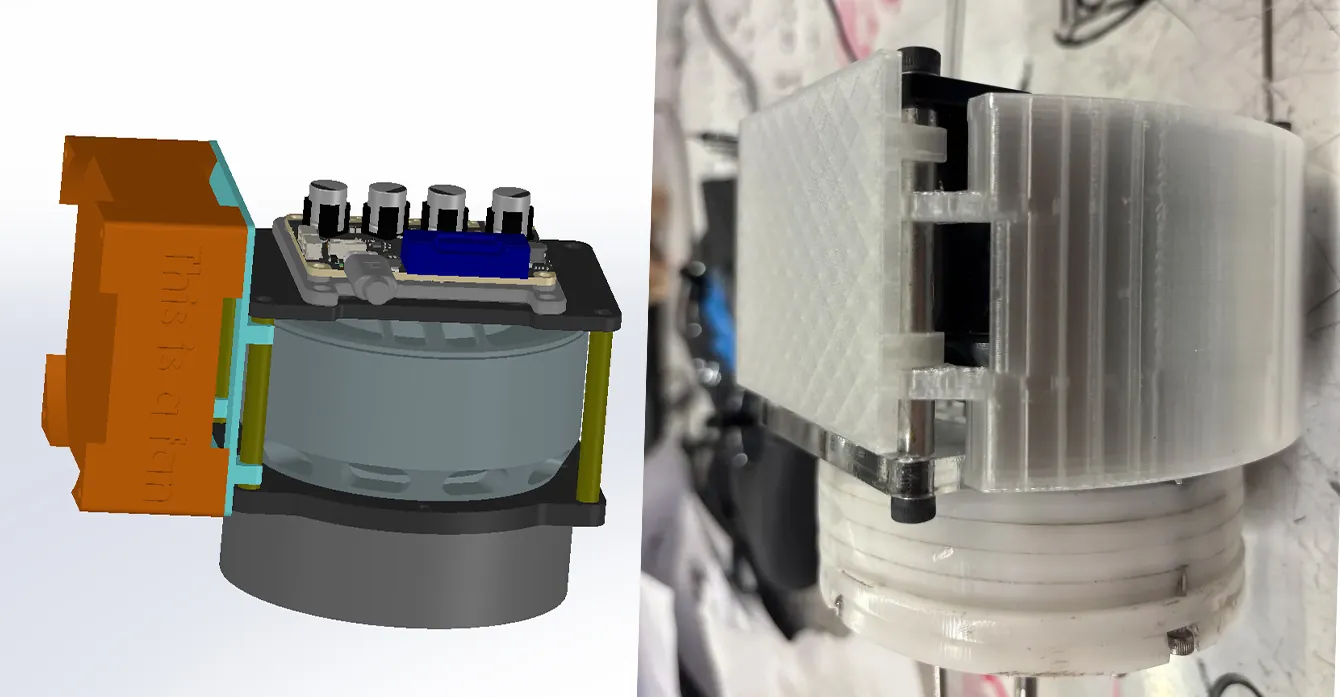

My initial design focused on creating a prototype for a snapping fan holder integrated into the motor cooling system. The objective was to develop a housing around the motor, along with a fan plate, to ensure optimal airflow. The fan effectively dissipates heat and maintaining a stable operating temperature, thus enhancing the motor's overall performance

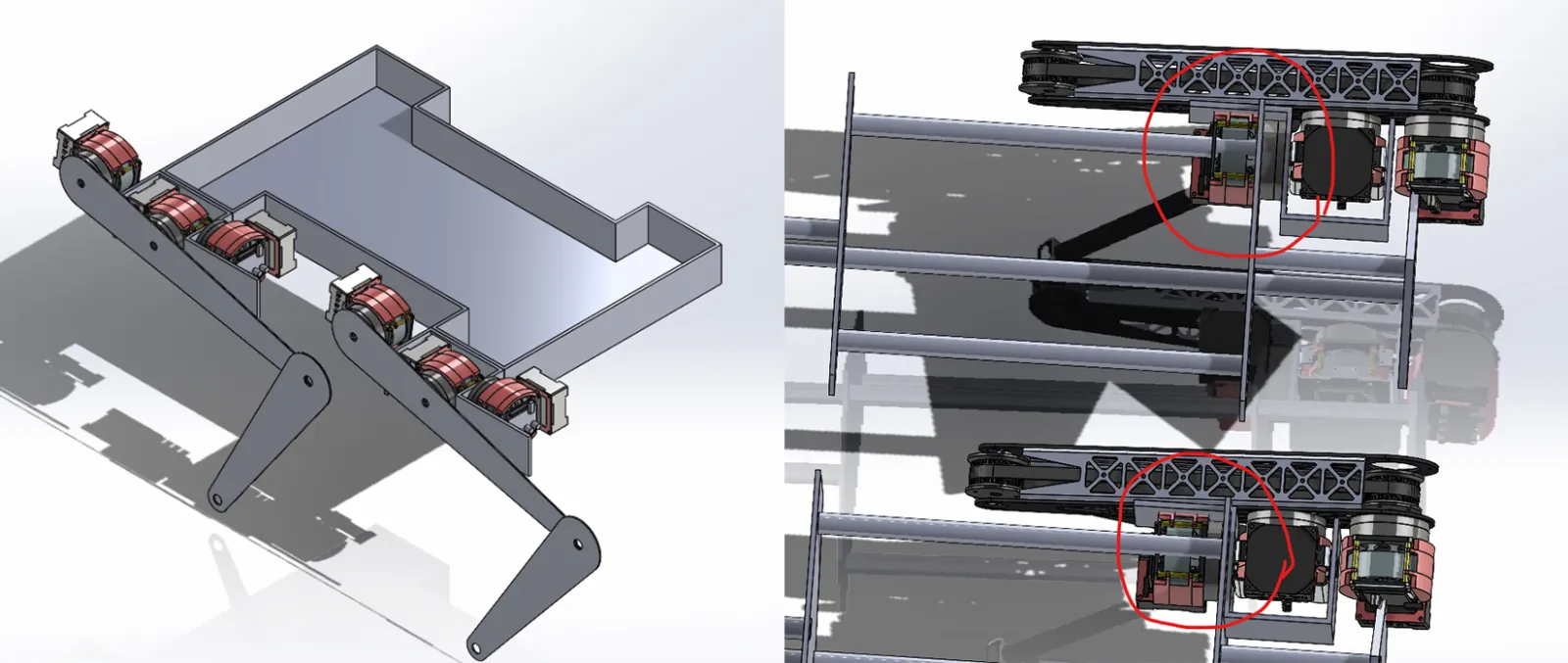

Initial chassis design and leg configuration, showcasing key considerations for actuator placement and movement. The images highlight two different actuator positions, showing the superiority of the upper configuration due to a more evenly distributed load.

Comparison of two possible current chassis designs - we are discussing overall weight balance, whether to make the main body out of cf tubes or plates.
